box-box

"Box, box. Box, box." Every F1 race engineer, ever.

box-box is an unofficial F1 race-weekend command center: live timing, Race Hub analytics, championship context, paddock briefing feeds, and local historical data in one Go + React app, with a preserved Bubble Tea TUI.

Live demo: box-box.amantahiliani.com

What it does

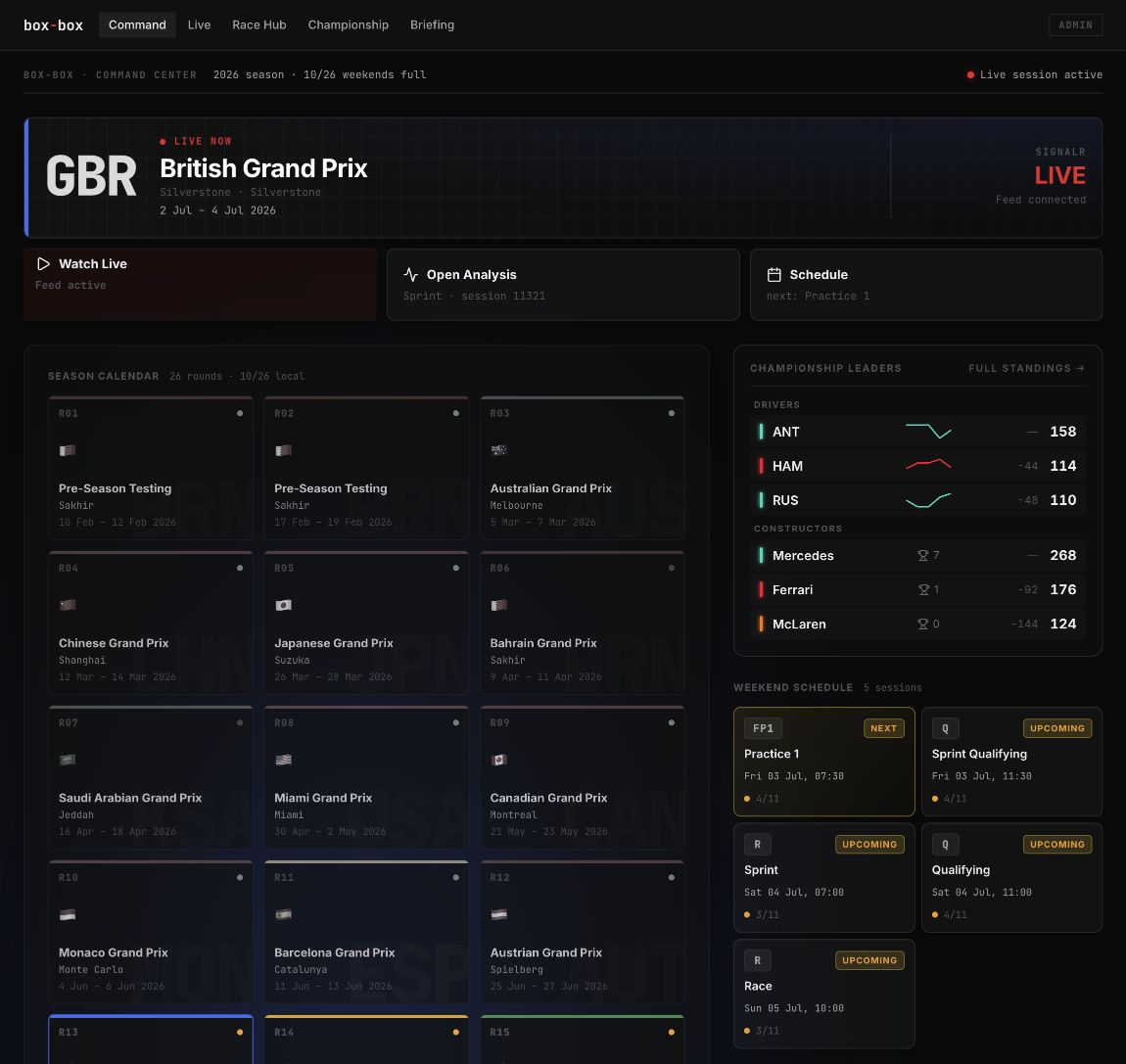

• Command Center: current race-weekend home with GP identity, live status, schedule, championship leaders, and direct analysis links.
• Race Hub: session workspace for overview, race story, strategy, laps, weather, race control, and dataset coverage.
• Live Timing: official F1 SignalR feed bridged through the Go server to the browser via SSE.
• Championship View: standings, form, teammate context, cumulative points, and a simulator.
• Paddock Briefing: RSS/Atom news ingestion for a local race-weekend briefing surface.
• Local-first history: OpenF1 data ingested into a SQLite domain database for fast historical browsing.
• Terminal Mode: Bubble Tea TUI with standings, calendar, driver profiles, live timing, track map, battles, pit window, and replay.

Status

Pre-beta and actively developed. The Web UI is the primary surface; the TUI is preserved and still useful for terminal workflows. Live timing depends on F1 broadcasting timing data, so it is only fully active during live sessions.

Quickstart

git clone https://github.com/AmanTahiliani/box-box.git
cd box-box

npm install                    # Playwright and repo-level test scripts
npm install --prefix frontend  # Vite + React app

npm run build --prefix frontend
go run ./cmd/main.go --web
# http://localhost:8080

For frontend development with a seeded local database:

go run ./scripts/seed-e2e-db/main.go --db /tmp/boxbox-dev.db
BOXBOX_DISABLE_LIVE=1 go run ./cmd/main.go --web --db /tmp/boxbox-dev.db --port 18080

BOXBOX_API_PORT=18080 npm run dev --prefix frontend
# http://localhost:5173

Architecture

Layer	Role
OpenF1 REST	Backfill and ingestion source; optional paid tier via OPENF1_API_KEY. Also powers the TUI’s on-demand reads and HTTP cache.
Domain SQLite (boxbox.db)	Local store for meetings, sessions, Race Hub datasets, and navigation APIs used by the Web UI.
HTTP cache SQLite (cache.db)	TTL cache for OpenF1 responses (TUI and legacy paths). Separate from the domain DB.
Official F1 SignalR	Live timing bridge in internal/live, exposed to Web (SSE) and TUI.
Go server	cmd/main.go: TUI, --web API + static SPA, or CLI ingestion.
React frontend	frontend/: production build served from frontend/dist when present.

The Web UI should call local-first Go APIs (/api/v1/...). Do not add direct OpenF1 reads in the frontend.

For architecture, phase history, and design rationale, see documentations/refactor/README.md.

Prerequisites

• Go (see go.mod for the module version)
• Node.js 18+ and npm (Web UI dev, unit tests, Playwright)
• Internet for ingestion and TUI OpenF1 calls
• For E2E / visual tests: npx playwright install (Chromium) after npm install at the repo root

Install

git clone https://github.com/AmanTahiliani/box-box.git
cd box-box

npm install                    # Playwright and repo-level test scripts
npm install --prefix frontend  # Vite + React app

Build

go build -o box-box ./cmd/main.go
npm run build --prefix frontend   # writes frontend/dist (gitignored)

Run: TUI (default)

go run ./cmd/main.go
# or: ./box-box

Logs go to box-box.log in the project directory so the terminal stays clean.

TUI keybindings

Key	Action
1-7	Home, Standings, Calendar, Race Detail, Drivers, Live, Track Map
tab / shift+tab	Next / previous tab
j/k, enter, b/esc	Navigate, select, back
s, b, p	Live: sectors, battles, pit window
r	Race replay (Race Detail, race sessions)
y	Cycle season year
q / ctrl+c	Quit

Run: Web (Go serves API + built React)

Build the frontend first, then start web mode. Go walks up from the cwd to find frontend/dist/index.html; if missing, it serves embedded legacy assets.

npm run build --prefix frontend
go run ./cmd/main.go --web
# http://localhost:8080

Use a specific domain database or port:

go run ./cmd/main.go --web --db ~/.local/share/box-box/boxbox.db --port 8080

Run: Web dev (Vite + Go API)

Vite proxies /api to the Go server. Set BOXBOX_API_PORT to match the Go --port.

Terminal 1: API (seeded DB is enough for UI work without ingesting):

go run ./scripts/seed-e2e-db/main.go --db /tmp/boxbox-dev.db
BOXBOX_DISABLE_LIVE=1 go run ./cmd/main.go --web --db /tmp/boxbox-dev.db --port 18080

Terminal 2: frontend:

BOXBOX_API_PORT=18080 npm run dev --prefix frontend
# default Vite port 5173: http://localhost:5173

BOXBOX_DISABLE_LIVE=1 skips starting the SignalR bridge (used in CI and local UI work).

Web routes

Route	Purpose
/	Command Center: fan-facing race-weekend home with GP identity, live status, session schedule, and analysis links
/race-hub?session_key=<key>	Race Hub: weekend workspace with session rail and Overview / Race Story / Strategy / Lap Data / Conditions / Race Control / Data Status tabs. Bare /race-hub auto-resolves to the focus session.
/admin	Admin / Data Health: ingestion coverage, local data status, and suggested CLI commands
/data-library	Legacy alias for Admin / Data Health
/live	Live Timing: timing tower and race control via SSE when a session is live

Example after seeding: http://localhost:5173/race-hub?session_key=9472

Ingest historical data and briefing feeds

Ingestion is a CLI mode on the same binary. Only one of --ingest-year, --ingest-meeting, --ingest-session, or --ingest-news may be set per run.

# Season: discover and store meeting metadata (2023+)
go run ./cmd/main.go --ingest-year 2025

# Full race weekend: all sessions + Race Hub datasets
go run ./cmd/main.go --ingest-meeting 1229

# Single session only
go run ./cmd/main.go --ingest-session 9472

# Preview without writing
go run ./cmd/main.go --dry-run --ingest-meeting 1229

# Refresh Paddock Briefing RSS/Atom feeds
go run ./cmd/main.go --ingest-news

# Custom DB path (default: ~/.local/share/box-box/boxbox.db)
go run ./cmd/main.go --ingest-meeting 1229 --db /tmp/boxbox.db

Use --ingest-meeting for a complete weekend. --ingest-year lists meetings for the season; ingest meetings individually or by weekend as needed. Optional analytics fetches may partially fail without aborting the whole run.

OPENF1_API_KEY

export OPENF1_API_KEY=your_key_here
go run ./cmd/main.go --web

Without a key, the free OpenF1 tier is used. A key may be required for paid-tier behavior (e.g. live session access during API lockouts). Ingestion and TUI calls use the same client.

Local files

Path	Purpose
~/.local/share/box-box/boxbox.db	Domain database (default --db)
~/.cache/box-box/cache.db	OpenF1 HTTP response cache (TUI / client)
box-box.log	TUI application log (project root)
frontend/dist/	Production React build (gitignored; build locally, do not commit)
.playwright/*.db	Seeded DBs for automated tests

Web mode logs to stderr.

Tests and QA

Go (targeted packages)

go test ./internal/live ./internal/models ./internal/store ./internal/ingest ./internal/query ./internal/web

All packages: go test ./...

OpenF1 integration tests (network, rate-limit aware): go test -v ./internal/api

Frontend unit tests and build

npm --prefix frontend test -- --run
npm --prefix frontend run build

E2E (Vite dev proxy + seeded API)

Starts seeded Go on port 18080 and Vite on 15173 (see playwright.config.ts).

npx playwright install   # first time only
npm run test:e2e

E2E production (Go serves frontend/dist)

npm run test:e2e:prod

Visual regression (screenshots)

npm run test:visual          # dev proxy stack
npm run test:visual:prod     # production serving (canonical baselines)

# after intentional UI changes
npm run test:visual:update
npm run test:visual:prod:update

Snapshots live under tests/visual/__snapshots__/.

Known limitations

• Live timing only works when F1 is broadcasting timing data; there is no guaranteed live session for local dev.
• E2E / visual tests use BOXBOX_DISABLE_LIVE=1 and seeded SQLite; they do not exercise full SignalR live behavior.
• frontend/dist is generated output; build before production web mode or test:e2e:prod.
• TUI historical views still use OpenF1 on demand with the HTTP cache; the Web UI’s local-first model does not fully replace the TUI yet.
• --ingest-year stores season meetings, not full session datasets; use --ingest-meeting or --ingest-session for Race Hub data.

License

MIT © Aman Tahiliani

---

Unofficial project; not associated with Formula 1 or the FIA.
